Pure Steam Sample Cooler

Netsteril muestreador de vapor puro

The pure steam sampling unit of Neopure is designed to obtain pure steam samples in an efficient and safety way to be analysed. This unit is manufactured to meet the quality requirements to maintain the samples integrity.

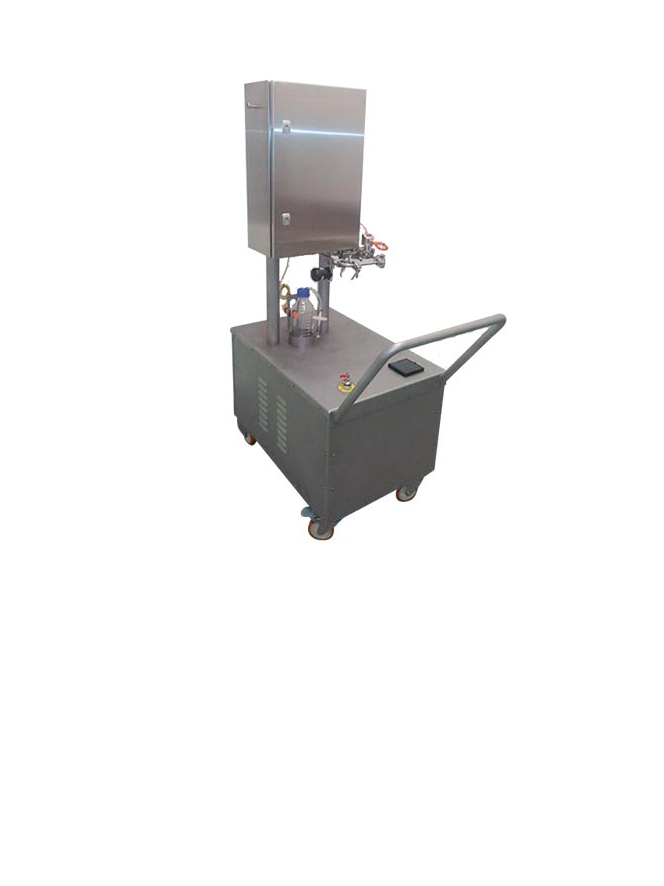

The model CCS-003 is mounted on a trolley to enable an ergonomic and easy transport to the steam simple point.

The pure steam sampling unit is provided with a graphic recoded to get a process report and meet regulator requirements.

The pure steam sampling unit enables to take samples for conductivity, TOC or microbiologic or endotoxins analysis.

Heat exchanger: AISI-316 L

Pipes, valves and instruments: AISI-316 L

Bench and trolley: AISI-316 L

(Material certificates and calibration certificates are included in the equipment documentation). All valves provided are sanitary membrane valves and all connections clamp type ASME BPE AISI-316 L SFF1 PL.

The pure steam sampling unit is provided with a sandblasting finish and itis able to get samples of 150 ml in 3,5 minutes. The equipment is provided with a cabinet where is located the heat exchanger the valves system and a bottom drawer where the condensation unit and the control system are located.  The bottom drawer is formed by removable trays to facilitate the maintenance works.

All valves provided are sanitary membrane valves and all connections clamp type ASME BPE AISI-316 L SFF1 PL.

The pure steam simpling unit of Neopure brings a gadget to put the glass flask with a non-invasive level switch to adjust the quantity of the sample to take from 150 ml up to 1l.

SuppliesConnectionPressureConsumption
Compressed airR. ¼”6 bar1 m³N/h
Power220 VAC50 Hz1.5 kW
DrainTC½”
